SMIERY-EMI-Sheilded multilayer PCBs

SKU: Production Parameters , Not Product SKUs
♪ Metallized half‑hole (castellated) ♫ Stamp hole + metal frame ♩ CNC routed + edge plating 𝄞 free prototype
0.0 (0 Reviews)
0 Sold
$0.00 $0.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Solution for:
    Prototype PCBs
    Passive Components
    Stencil for SMT
    RF Ready to use module
    ALL
  • PCB type:
    EMI-sheild multiple PCBs
  • SMIERY VALID TIME:
    1 Month
    3 Months
    6 Months
    Please select the information you wantX
  • Production Design:

    Please provide only PDF/RAR/ZIP/WORD/EXCEL/PPT/TXT/CSV files. A file size cannot exceed 20MB

  • Additional Notes:
    0 / 999
  • Total extras:$0.00
Quantity:
-
+
  • EMI-Sheilded multilayer PCBs
  • EMI-Sheilded multilayer PCBs
1/1
  • EMI-Sheilded multilayer PCBs
  • Description
♪

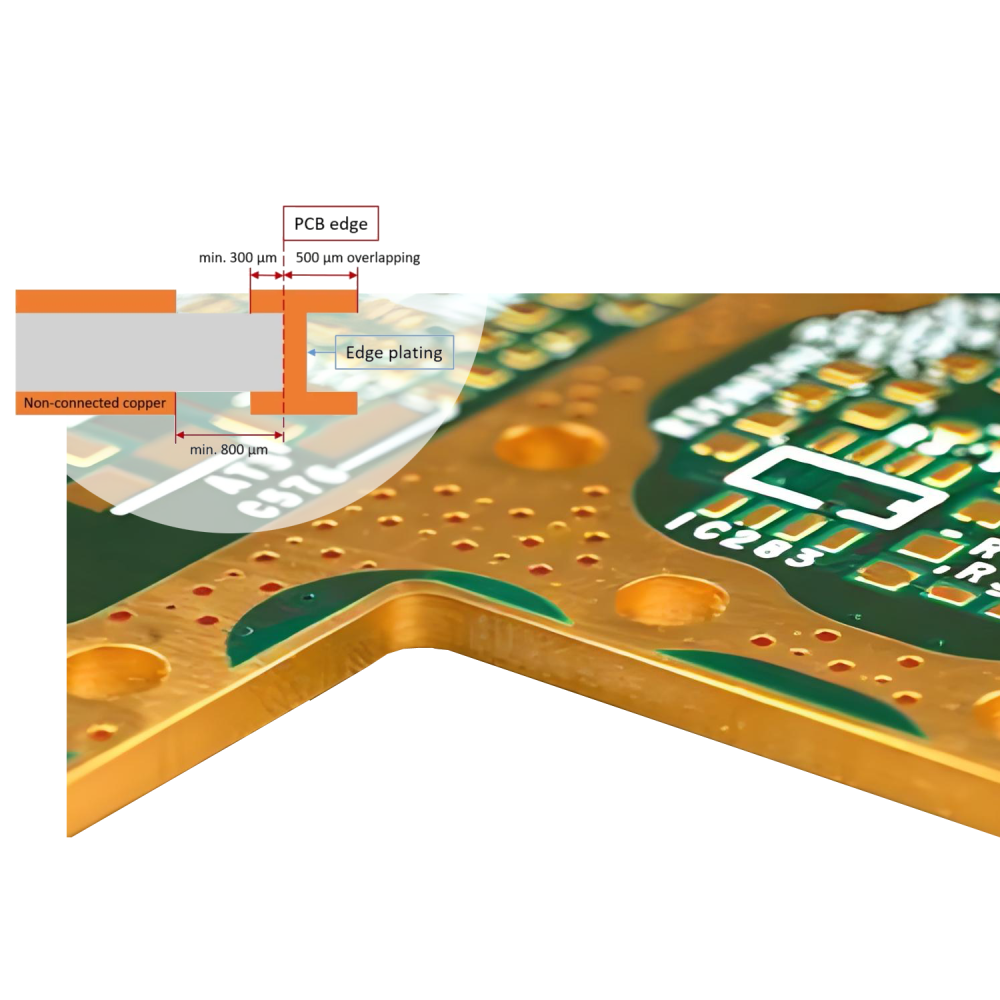

Metal‑edge PCB · capability checklist

♪ Email your Gerber files – our senior engineers will analyze your design and provide a free DFM report.
Parameter Our capability / requirement
Board thickness ♪ 0.8mm – 3.2mm
(for metal‑edge, 1.0‑2.0mm recommended)
Edge plating width ♪ ≥ 0.3mm continuous metal coating
on side walls
Copper thickness ♪ 0.5oz – 3oz (base)
♪ Edge plating final copper ≥ 25μm
(can be reinforced with extra plating)
Edge plating methods ♪ Castellated half‑hole
♪ Stamped hole + metal frame
♪ CNC routed + edge plating
(select based on your design)
Min. castellated hole diameter ♪ ≥ 0.6mm
♪ Pad clearance ≥ 0.25mm
(after V‑cut, half‑hole integrity guaranteed)
Clearance for edge plating ♪ ≥ 1.5mm from board edge to internal copper
(to avoid short circuit during plating)
Edge finish ♪ HASL / lead‑free HASL
♪ ENIG (gold)
♪ OSP (if edge plating not required)
(ENIG recommended for exposed edges)
Solder mask ♪ Must be removed from edge‑plating area
(solder mask opening defined in Gerber)
Surface flatness ♪ ≤ 0.75% (for metal‑frame assembly)
(ensures good contact with shielding cover)
Maximum panel size ♪ 600mm × 500mm
(larger sizes possible with special arrangement)
♪ Gerber + drill files required ♪ Edge‑plating area clearly marked ♪ Free DFM analysis within 24h
𝄞 New customer: buy one SMIERY → free prototype. Prototyping fee deducted from volume order.
First order benefit
𝄞 Design meets the list? Email Gerber to pcb@smiery.com – our senior engineers will analyze your design.
